Fairlady emblem dimension

[hlry-2]

Hi there, is anyone know the dimension of the rear FAIRLADY emblem size? I cant find this emblem anywhere, so i think I might just custom made a metal emblem myself, i have all the tools for this. Really appreciate it if anyone have this information

Thanks

[datsun1500]

Rallye has them for $169

http://datsunroadster.com/SUB_SECTION_D ... mblems.htm

[Doggggboy]



Here you go.
The whole are for the pin placement

[hlry-2]

IMG_20200617_093038.jpgIMG_20200617_093008.jpgHere you go.
The whole are for the pin placement

I dont think its a same emblem, yours is the 1500, mine is 2000

Thanks though

[hlry-2]

Rallye has them for $169

http://datsunroadster.com/SUB_SECTION_D ... mblems.htm

Thanks

[Doggggboy]

From Rallye
"The metal version of this emblem #638-13 was original equipment on 63-65 USA Datsun 1500's and was original equipment on 63-70 1500/1600/2000s that stayed in Japan or were exported to certain other countries. It was used on the front fenders of the non-USA 1600 and 2000 and the script emblem #798-09 was used on the rear. "
I bought this car in Canada, but am not sure where it was sold originally.

[todd lorber]

If you end up making the more modern script and you want to amortize the cost over multiple units, I'd be up for a couple. However, paying over $100.00 for each is out of my range. The older, cursive version looks like it might interfere with the side moulding-at least on my car.

[datsun65]

The Block letter 'FAIRLADY' version was used in the US market on 63-65 1500, which had peg holes specific to the 1500 fenders. It was also used in Japan on the later 65-70 1600/2000 wih a different peg configuration (than the 1500)

The Larger Script version 'FAIRLADY' is used on the rear panel (not the fender). It works for 1964-1970 rear panels.

[hlry-2]

Thanks to all master for all the history write up here, but does really anyone know the dimension of this emblem, I saw some selling over $160-200 for this emblem, me personally think its out of my range. I have a 3d printer, so I can print it out and cast it into metal or anything, it would only set me less then $20.
Anyone can help me out with the dimension is really helpful

[Curtis]

I believe the rear emblem should be Datsun_1500. Every stock one I've seen including the one I owned had Fairlady on the fenders and 1500 on the back.

[datsun1500]

I believe the rear emblem should be Datsun_1500. Every stock one I've seen including the one I owned had Fairlady on the fenders and 1500 on the back.

Only on the 1500s. He has a later car and wants the jdm badge.

[Alvin]

Hi there, is anyone know the dimension of the rear FAIRLADY emblem size? I cant find this emblem anywhere, so i think I might just custom made a metal emblem myself, i have all the tools for this. Really appreciate it if anyone have this information

Thanks

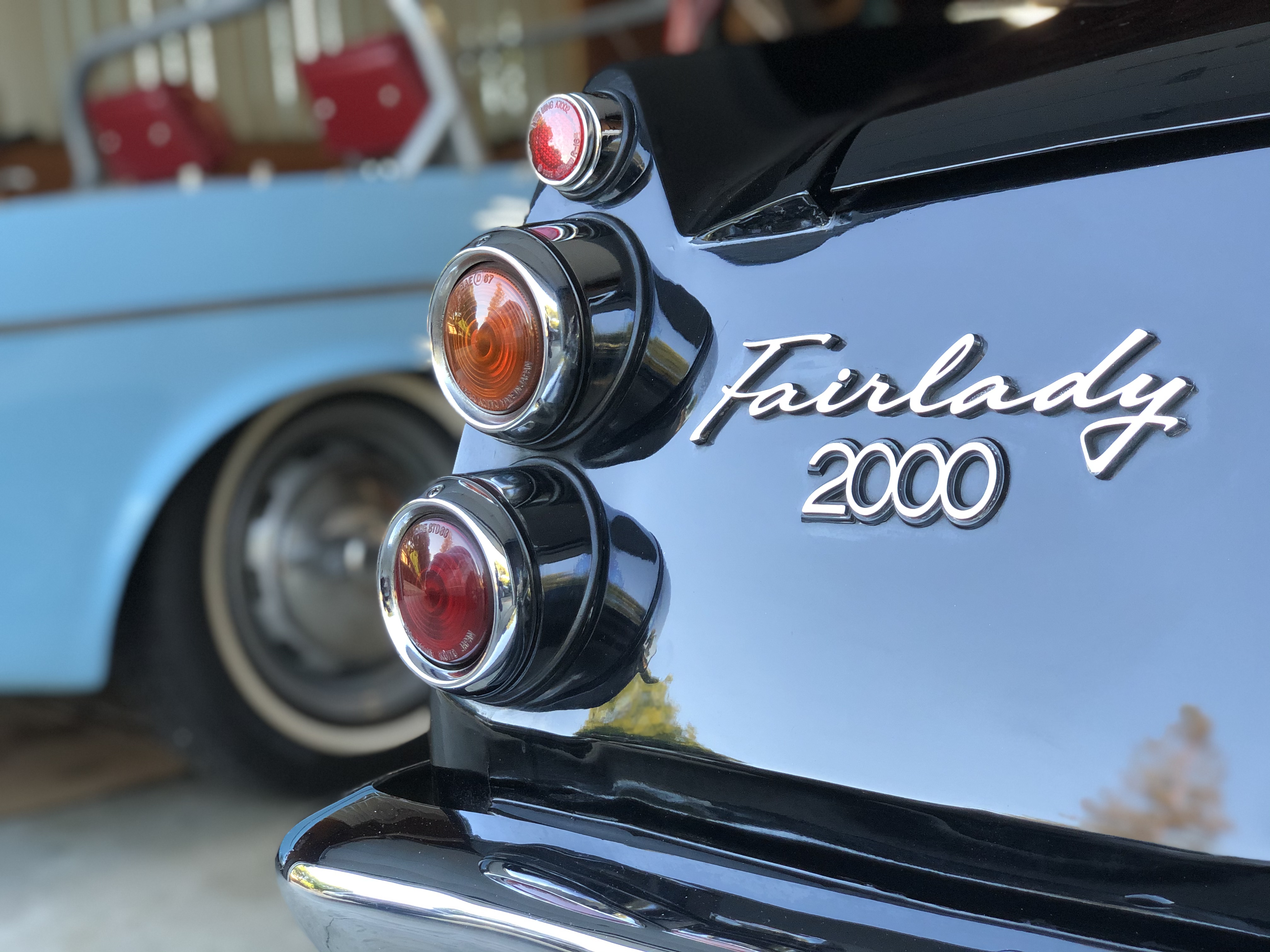

I just took a picture of mine and measured it

Height: 40mm at the "F" and 48mm from the "d to y"
Length: 22cm


My goodness this was a tough thread to read!

[hlry-2]

Hi there, is anyone know the dimension of the rear FAIRLADY emblem size? I cant find this emblem anywhere, so i think I might just custom made a metal emblem myself, i have all the tools for this. Really appreciate it if anyone have this information

Thanks

I just took a picture of mine and measured it

Height: 40mm at the "F" and 48mm from the "d to y"
Length: 22cm


My goodness this was a tough thread to read!

You make my day. Thank you so much
